● Cooling Capacity (kW):11.0
● Power Supply: Single-phase,220V,60Hz
● CSP(FkWh/kWh)：5.29
● Power Consumption (W) ：3385
● Operating Current (A)：13.5
● Starting Current (A)：15.0
● Annual Energy Consumption (kWh/year)：2473
● CSPF Energy Efficiency Rating (Grade)：1

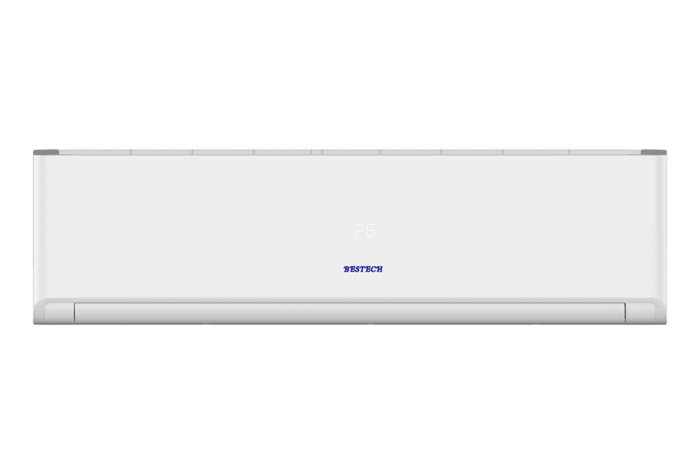

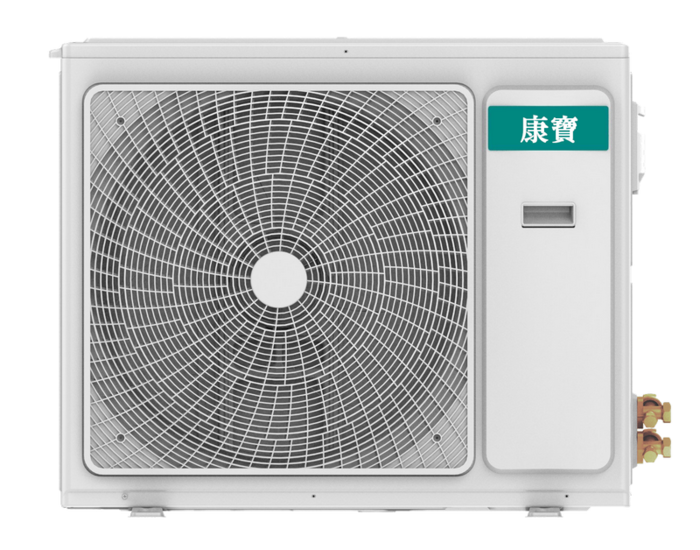

● Dimensions (mm) (Height x Width x Depth) ：(Indoor unit)378,1380,294 (Outdoor unit) 769,990,400
● Outdoor Unit Mounting Hole Distance (mm) (Width x Depth) ：(Outdoor) 608,368
● Product Weight (kg): (Indoor) 24.0 (Outdoor) 54.0
●Wiring
Power Input Location: Outdoor unit
Indoor/Outdoor Unit Connection Wires: 3
● Piping Specifications (inch):
Liquid Pipe: 3/8
Gas Pipe: 5/8
